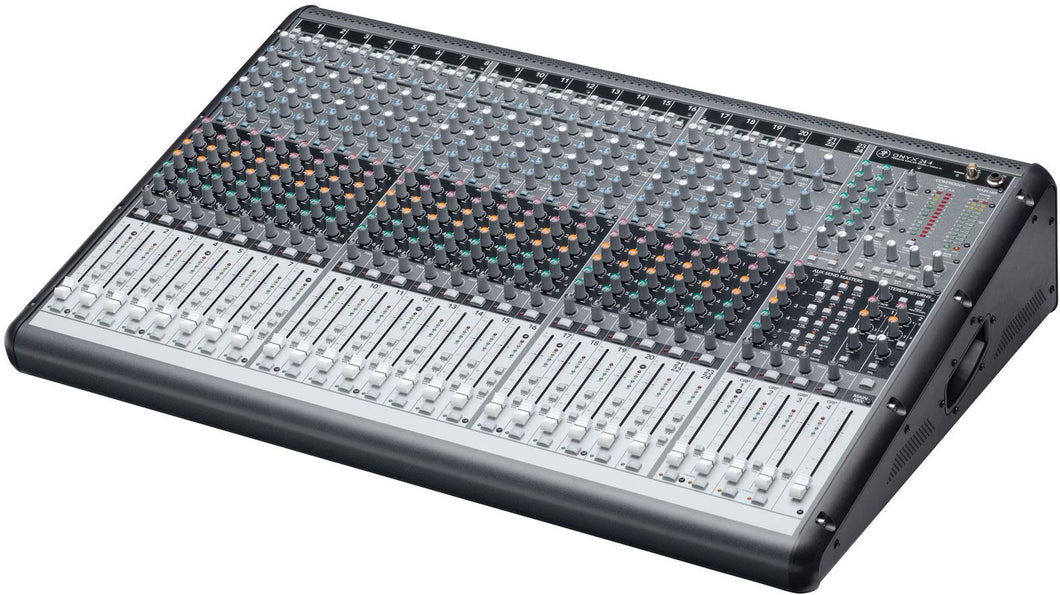

Onyx 24.4 Premium 24-Channel Analog Live Sound Mixing Console Specifications:
Frequency Response
- Mic Input to Main Output (Gain @ Unity)
- +0, -1 dB, <10 Hz to 80 kHz
- +0, -3 dB, <10 Hz to 120 kHz
Distortion (THD & IMD)
- Mic Input to Main Output (@ +4 dBu)
- THD: <0.007% 20 Hz to 20 kHz, 0.003% @ 1kHz typical
- SMPTE IMD: <0.005% (7 kHz/60 Hz, 4:1)
Dynamic Range
- >115 dB, Mic In to Main Out
Noise Floor
-
Signal-to-Noise Ratio: - -89 dBu, (ref. +4 dBu, Mic In to Main Out, 24 channels and Main Mix levels at unity)
- Equivalent Input Noise (E.I.N.), 20Hz to 20 kHz Bandwidth, 150Î source impedance: -129.5 dBu @ +60 dB gain
- Mic Output Noise:
- Direct Output: -100 dBu (minimum gain)
- Residual Output Noise:
- Main Out: -100 dBu (Channel and Main Mix levels off)
- Main Out:
- 24¢4: -85 dBu (24 channels and Main Mix levels at unity)
Common Mode Rejection Ratio (CMRR)
- Mic In: >70dB @ 1 kHz, Gain @ maximum
Crosstalk
- Adjacent Inputs: < -95dB @ 1 kHz
- Input to Output: < -85dB @ 1 kHz
Input Gain Control Range
- Mic In: 0dB to +60dB
- Line In: -20dB to + 40dB, mono channels
Phantom Power
- +48 VDC
Equalization
- Mono Channel EQ:
- High: ±15 dB @ 12 kHz
- High Mid: ±15dB, sweepable from 400 Hz to 8 kHz
- Low Mid: ±15dB, sweepable from 100 Hz to 2 kHz
- Low: ±15dB @ 80 Hz
- Stereo Channel (Aux Input) EQ:
- High: ±15dB @ 12 kHz
- High Mid: ±15dB @ 2.5 kHz
- Low Mid: ±15dB @ 400 Hz
- Low: ±15dB @ 80 Hz
Mixer Rated Output
- Main Outs: +4dBu
- Aux Send: +4dBu
- Group Send: +4dBu
- Monitor Out: +4dBu
- Matrix Out: +4dBu
- Maximum Rated Output: +21 dBu @ Main XLR and TRS outputs
Maximum Input Levels
- Mic Input: +21 dBu, Gain @ unity, pad out
- Mic Input: +30 dBu, Gain @ unity, pad in
- Line Input: +21 dBu, Gain @ -20 dB
- Tape Input: +30 dBu
- Stereo Return: +21 dBu
Maximum Voltage Gain
-
Mic Input to: - Main Out: 90dB
- Group Out: 80dB
- Aux Sends: 86dB
- Monitor Out: 103dB
- Matrix Out: 105dB
- Phones Out: 103dB
- Line Input to:
- Main Out: 70dB
- Group Out: 60dB
- Aux Sends: 66dB
- Monitor Out: 83dB
- Matrix Out: 85dB
- Phones Out: 83dB
- Stereo Return to:
- Main Out: 53dB
- Group Out: 43dB
- Aux Sends: 49dB
- Monitor Out: 66dB
- Matrix Out: 68dB
- Phones Out: 66dB
Input Impedance
- Mic Input: 3 kOhms, balanced
- Mono Channel Line Input: 34 kOhm, balanced
- Stereo Returns: 20 kOhm, balanced
- Talkback Mic: 1 kOhm, balanced
Output Impedance
- Main Out: 100Ohm balanced, XLR outputs, 300Î TRS outputs
- Direct Out: 300Ohm
- Group Out: 300Ohm
- Monitor Out: 300Ohm
- Matrix Out: 300Ohm
- Aux Sends: 300Ohm
- Phones Out: 25Ohm
Channel Level LED (Sensitivity)
- 0 LED = 0 dBu (normal operating level)
VU Meters
- Main Left and Right, Compressor Input, 12 segments:
- Clip (+20), +15, +10, +6, +3, 0, -2, -4, -7, -10, -20, -30 0 LED = 0 dBu
- Compressor Gain Reduction, 12 segments: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15 dB
AC Power Requirements
-
Power Consumption: - 100 watts
- Universal AC Power Supply: 100 VAC - 240 VAC, 50-60Hz
Dimensions: (HxWxD):
- 7.3" x 31.2" x 21.9", 185mm x 792mm x 555mm
Weight:
- 39.5 lb./ 17.9kg
