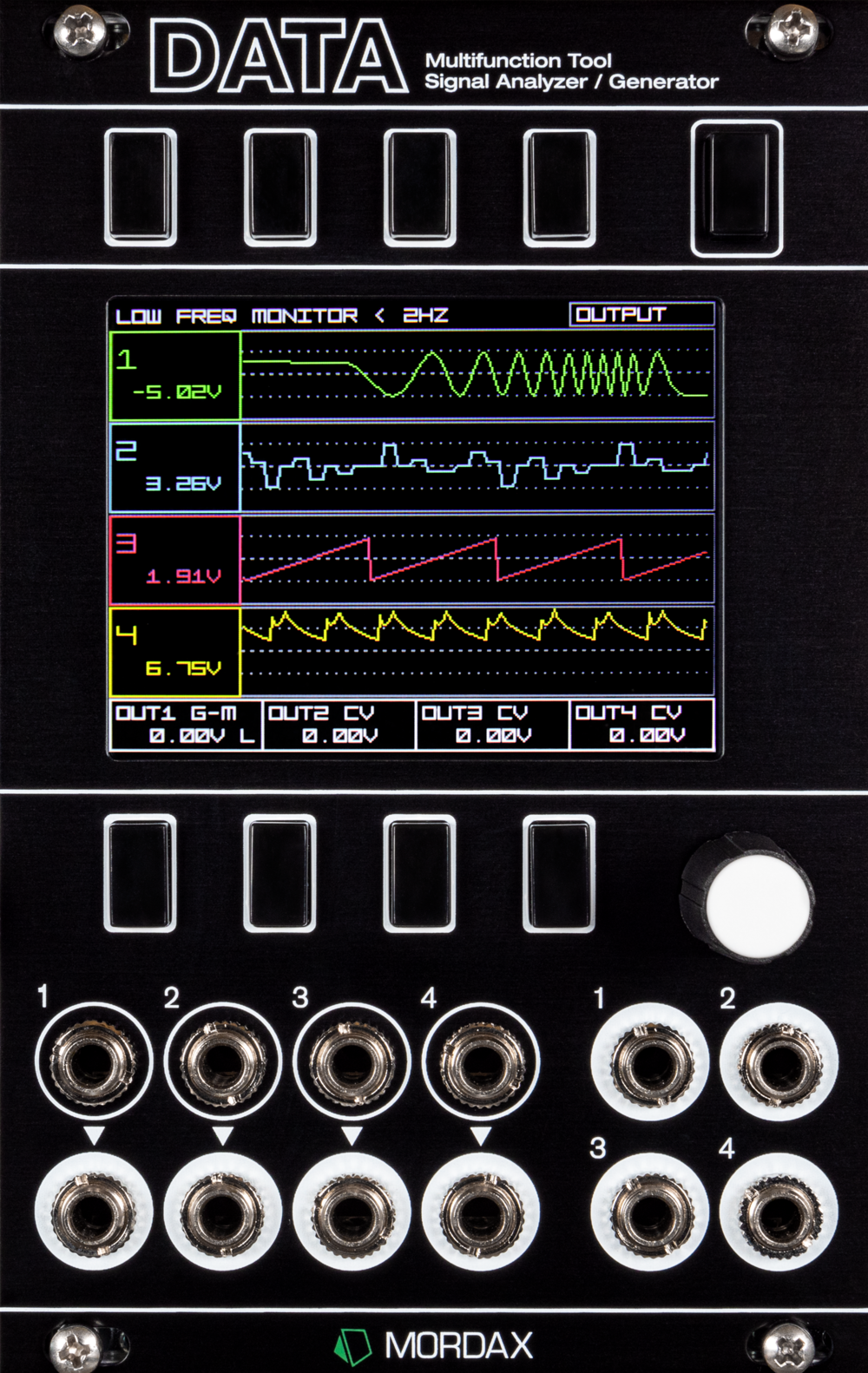

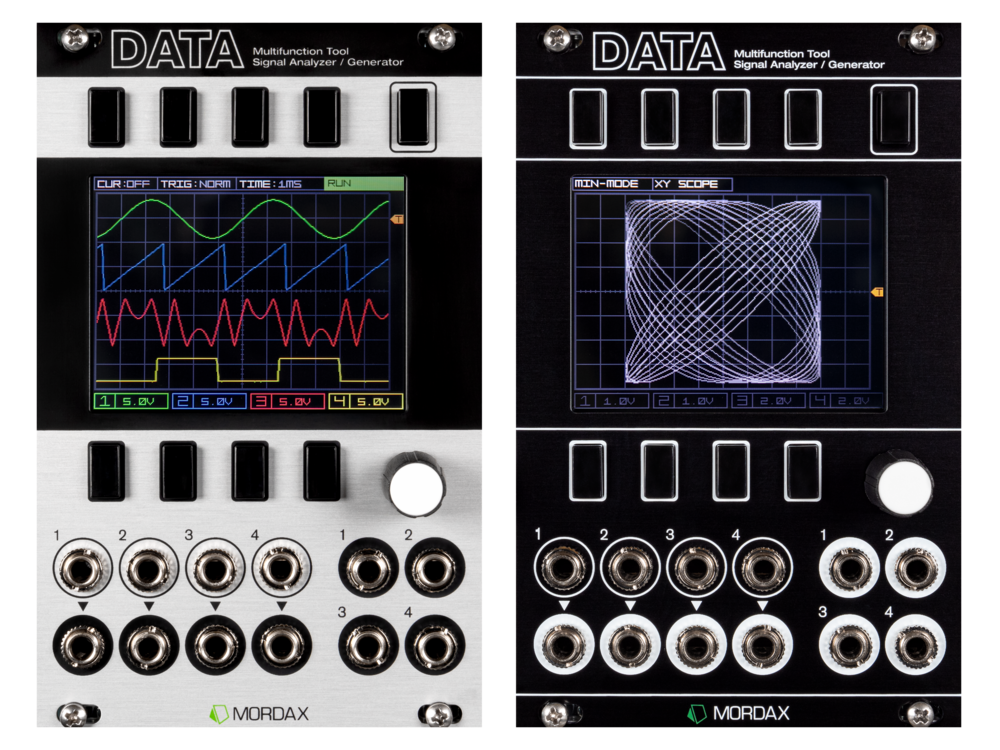

DATA: The multifunction tool for Eurorack modular systems. Black panel version.
16 HP (81.28mm width)
35mm approx. depth
Full color, 2.8” (71mm) display, with crystal clear, scratch resistant window
User upgradable firmware via included microSD card
Oscilloscope, tuner, waveform generator, clock source/div/mult, spectral display, and more
Input / Output:
4 input jacks (+/-10V range), AC or DC coupled via on-screen control
4 buffered through jacks, one for each input channel
4 output jacks (+10 to -5V range), can be CV, audio, trigger or gate signals
Power Consumption (average):
~250mA +12V
~60mA -12V
Info from Mordax
Condition: New
