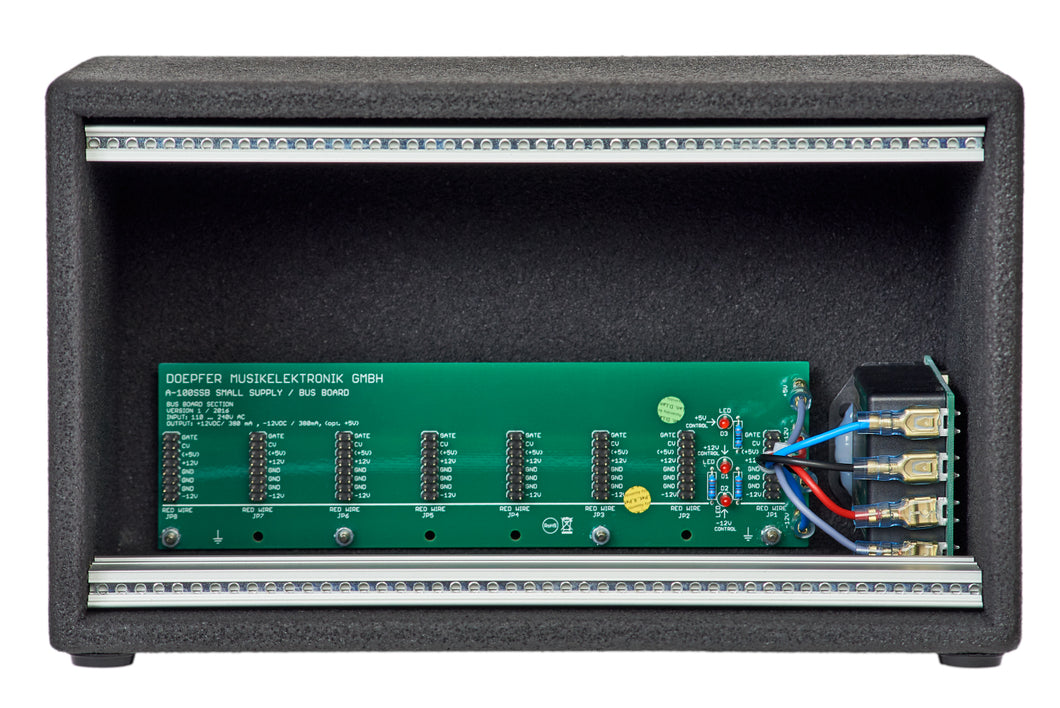

The A-100LC1V is very similar to the A-100LC3 but offers only 48 HP for installation of modules. It is equipped with the power supply A-100SSB.
The case is made of wood with black coating.
Quantity of bus boards: 1 (short version with 8 module connectors)
Electrical specifications: mains voltage: 110 ... 240V~ (IEC connector at the rear panel, the mains cable is not included because of the many different versions for different countries) output voltages/current: +12V/380mA, -12V/380mA, +5V/100mA (the +5V current is taken from the +12V supply, i.e. the sum of the +12V current and the +5V current has to be less than 380mA)
Dimensions in mm:
- outside: approx. 262 mm (W) x 154 mm (H) x 158 mm (D)
- inside: 1 x 48 TE (244 mm) x 3 U
Condition: New
